Nomad-ADV Billet Rhino clutch cover with increased oil capacity for KTM EXC and Husqvarna FE

PARTS FINDER

Nomad-ADV Billet Rhino clutch cover for KTM EXC and HUSQVARNA FE 2025 450 and 500

Sold Out - Special Order

$409.00

Fast shipping

Australia wide

Same day, Dispatch

For orders placed before 2pm AEST

Shop Now, pay later

100% Interest free

Aussie Owned & Operated since 2002

And we’re 100% proud of it

Description

MPN: RhinoNomad_2025

Why would you fit a Rhino clutch cover? Four main reasons:
1. Increased oil capacity.
2. Clutch debris trap
3. Stronger than OEM
4. Better cooling

The Rhino cover allows for 1.5 litre of engine oil, which is a 25% increase over OEM. Add to that a larger frontal area to keep the engine oil cool and you get a useful extended range between oil changes. Under normal conditions this allows for 3.000 km between services. Our own EXCs have over 35,000 km on the odometer, a mix of Trans European Trails and 12 hr runs on the German Autobahns on our way to Scandinavia. We change the oil every 3k but have done a few 4 and 5k stints as well. Both engines have not been rebuild, despite each having well over 550 hrs on them, and have as new compression.

Under the Rhino cover is a build-in sludge trap in the form of a machined pocket. The function of the sludge trap is to catch debris coming from the clutch, which would otherwise find its way through the whole engine with pretty disastrous effects.

The Rhino cover is made from Swiss made aluminium, in a very high grade and therefore immensely strong. Much stronger than the cast OEM cover.

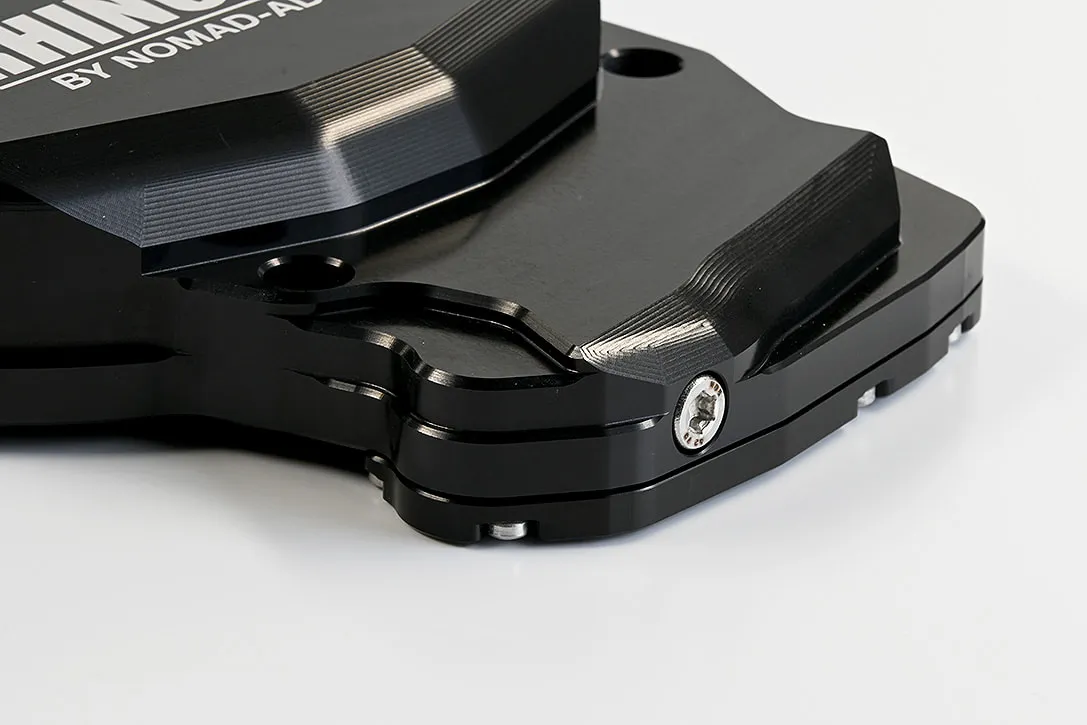

Precision engineered and machined

Designing and machining the Rhino cover for the EXC/FE/EC 2024-25 model
Designing and machining the cover was a big job. The difficulty was designing a cover which creates more air volume, more oil volume, create a bigger frontal area for cooling, is stronger than OEM and yet give the rider the same room for his or her feet. It’s billet machined, in-house, from a big solid block of Swiss made aluminium and requires over 50 individual operations using 21 different machine tools. The machining is done on our US made cnc milling machines, using only European made tools. Once the machining is done it’s hard anodised for optimum protection.
It took several prototypes, lots of headaches(!) and is more time consuming to make than a complete navigation tower. It hasn’t been an easy process, but the end result is more than worth it.

Features

Much stronger than OEM
Beautifully machined, inside and out, from high grade Swiss aluminium
Hard anodised in black
Better cooling due to increased surface area
300ml Increased oil capacity, allowing for extended service intervals (1.5L total)
Reduces pressure on seals, gaskets and piston rings
Accepts OEM filler plugs, or the Powerparts anodised version
relocated filler opening for easier servicing
Clutch debris trap
