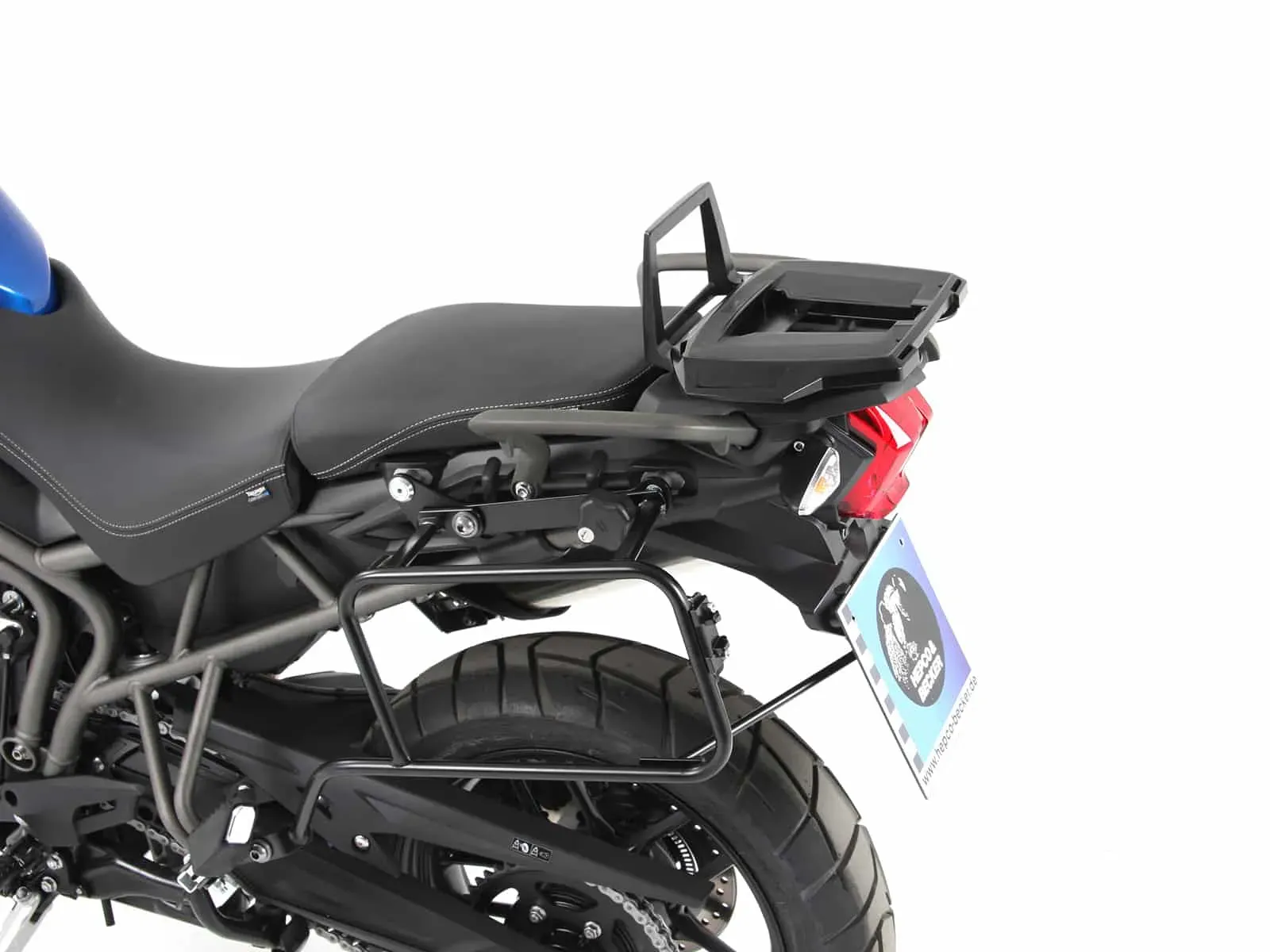

Outstanding fit - every HEPCO&BECKER Lock-it side carrier is precisely tuned to the particular type of motorcycle. This results in a very high precision on the motorcycle. Made of steel tube and custom-made laser parts, which are reinforced once more in highly stressed areas. The quality of Lock-it side carriers has already been confirmed several times in trade magazines.

The carriers can be installed and removed within seconds. To do this you just have to loosen the lock-it screws with a quarter turn and you can remove the side parts backwards or sideways. As an anti-theft device you can optionally protect the carrier with our Lock-it screws against thefts (item number: 151050).
All cases are closed by means of a quick release fastener on the carrier. For this you need the aluminum adapters (item number 700114) which are usually within delivery of the sidecases. The aluminum adapters are screwed to the rear right and left of the carrier and then offer an attachment option for the locks of the suitcase.

• For all Hepco & Becker side cases / hard cases / Aluminium boxes
• solid construction
• Fast detachable, remaining only unobtrusive small tabs on the motorcycle
• High quality surface finish
• simple assembly, please refer to the enclosed mounting instructions
• Scope of delivery: right + left incl. Installation material and assembly instructions
• Please refer to the vehicle specific instructions or the assembly instructions
• Recommended load: 10kg per side case

NB: This part is for the later version that was made for all 800 models from the production year 2015 - 2017 inc XCX / XRX etc.  Please check our fitting sheet to confirm how this works.

Easy check!  Look at the two tubes that form the pillion peg mount. If one tube has a welded nut inside then the pannier frame is this one, the later model (6507536).  BUT If both tubes are open, it is the older version6507505 00 01.
In reality, they are the same frames EXCEPT for how the lower mounting bracket attaches to the pillion peg mounts.
